Dombaj {Домбай} 303

Dombaj {Домбай} 303; Cherkesskij Radio (ID = 631817) Radio
Dombaj {Домбай} 303; Cherkesskij Radio (ID = 261282) Radio Dombaj {Домбай} 303; Cherkesskij Radio (ID = 261284) Radio
Use red slider bar for more.
Dombaj {Домбай} 303; Cherkesskij Radio (ID = 261282) Radio

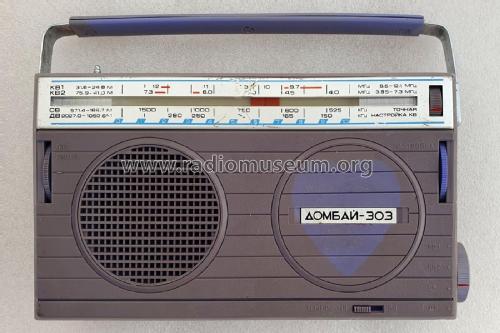

Cherkesskij Radio: Dombaj {Домбай} 303 [Radio] ID = 261282 632x506
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dombaj {Домбай} 303, Cherkesskij Radio Works "Poliot", Cherkess:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Cherkesskij Radio Works "Poliot", Cherkess
Year: 1982–1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Dombaj {Домбай} 303 - Cherkesskij Radio Works "
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 215 x 125 x 47 mm / 8.5 x 4.9 x 1.9 inch
Notes Coverage MW, LW and 2× SW (24,8-31,5 m, 41-75,9 m).
Analog portable radio: Rossiya 303.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 59.00 RUR
Mentioned in - - Data from my own collection
Literature/Schematics (1) -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
