ELA FM Tuner Unknown

ELA FM Tuner Unknown; Unknown Worldwide (ID = 1812405) Radio ELA FM Tuner Unknown; Unknown Worldwide (ID = 1812406) Radio
ELA FM Tuner Unknown; Unknown Worldwide (ID = 1812407) Radio ELA FM Tuner Unknown; Unknown Worldwide (ID = 1812408) Radio
Use red slider bar for more.
ELA FM Tuner Unknown; Unknown Worldwide (ID = 1812405) Radio

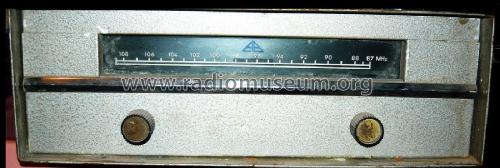

Unknown Worldwide: ELA FM Tuner Unknown [Radio] ID = 1812405 1400x473
Select picture or schematic to display from thumbnails on the right and click for download.
For model ELA FM Tuner Unknown, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Super-Heterodyne (Super in general)
Wave bands FM Broadcast Band Only
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: ELA FM Tuner Unknown - Unknown Worldwide
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 340 x 210 x 110 mm / 13.4 x 8.3 x 4.3 inch
Notes

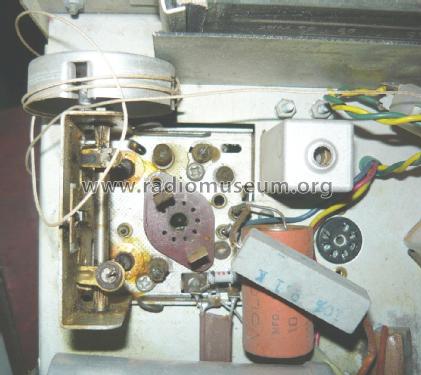

Volcap electrolytic capacitor and Lemex resistor made in Mexico.
Ceramic capacitors made by MIAL.

Philips AP2110/01 FM-unit, made in Belgium.

Net weight (2.2 lb = 1 kg) 3 lb 0 oz (3 lb) / 1.362 kg

Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
