Elbex 2200

Elbex 2200; Unknown - CUSTOM (ID = 2058525) Citizen Elbex 2200; Unknown - CUSTOM (ID = 2058526) Citizen
Elbex 2200; Unknown - CUSTOM (ID = 2058527) Citizen Elbex 2200; Unknown - CUSTOM (ID = 2058528) Citizen
Elbex 2200; Unknown - CUSTOM (ID = 2058529) Citizen
Use red slider bar for more.

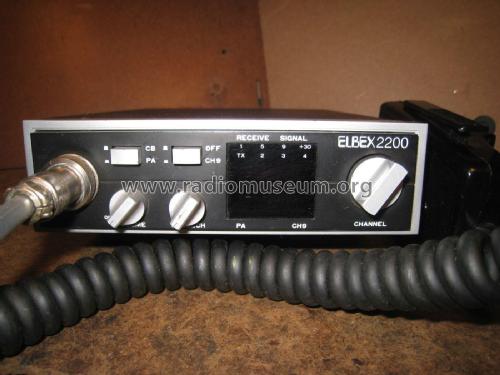

Elbex 2200; Unknown - CUSTOM (ID = 2058525) Citizen
Unknown - CUSTOM: Elbex 2200 [Citizen] ID = 2058525 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elbex 2200, Unknown - CUSTOM BUILT: South Korea (ROK)

Country:  South Korea
Manufacturer / Brand:  Unknown - CUSTOM BUILT: South Korea (ROK)
Year: 1980 ? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Direct Current supply (DC) / 13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 5 W (max.)
from Radiomuseum.org Model: Elbex 2200 - Unknown - CUSTOM BUILT: South
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 135 x 40 x 180 mm / 5.3 x 1.6 x 7.1 inch
Notes

ELBEX mod. 2200: 40 canali, controllo volume e squelch, commutatore ch. 9 emergenza, commutatore cb/pa, uscita per altoparlante esterno, S/meter-power a led rossi.



Net weight (2.2 lb = 1 kg) 1.250 kg / 2 lb 12.1 oz (2.753 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
