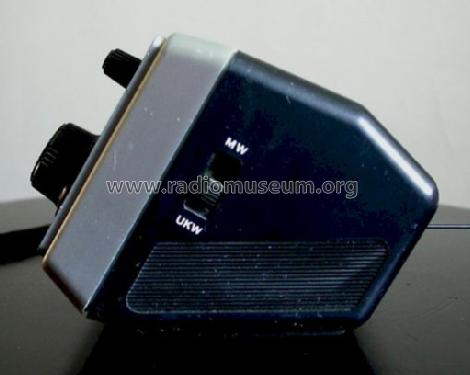

Fahradio R 6047

Fahradio R 6047; Unknown Worldwide (ID = 1448788) Radio
Fahradio R 6047; Unknown Worldwide (ID = 697019) Radio Fahradio R 6047; Unknown Worldwide (ID = 697014) Radio
Fahradio R 6047; Unknown Worldwide (ID = 697018) Radio Fahradio R 6047; Unknown Worldwide (ID = 697015) Radio
Fahradio R 6047; Unknown Worldwide (ID = 697016) Radio Fahradio R 6047; Unknown Worldwide (ID = 697017) Radio
Fahradio R 6047; Unknown Worldwide (ID = 697020) Radio Fahradio R 6047; Unknown Worldwide (ID = 1004229) Radio
Fahradio R 6047; Unknown Worldwide (ID = 1004230) Radio Fahradio R 6047; Unknown Worldwide (ID = 1004238) Radio
Use red slider bar for more.
Fahradio R 6047; Unknown Worldwide (ID = 697019) Radio
Unknown Worldwide: Fahradio R 6047 [Radio] ID = 697019 900x484
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fahradio R 6047, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1979 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Fahradio R 6047 - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 147 x 75 x 100 mm / 5.8 x 3 x 3.9 inch
Notes AM/FM-Fahrrad-Radio, Stativgewinde 5mm zur Befestigung an der Unterseite, Frequenzbereich: FM 87,5-108 MHz, AM 525-1605 kHz, Wurfantenne für FM, Ferritantenne 5,5 cm für AM; 2 Transistoren im UKW-Eingang, LIN-IC TDA1083 Achtung: Zum Zerlegen des Radios muss eine Schraube, die sich hinter dem Schild im Batteriefach befindet, gelöst werden.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
