FM Radio

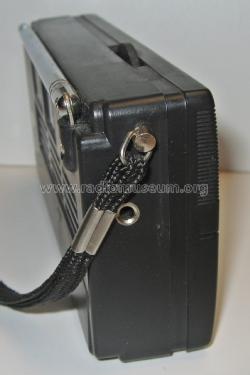

FM Radio ; Unknown Worldwide (ID = 1888652) Radio FM Radio ; Unknown Worldwide (ID = 1888653) Radio
FM Radio ; Unknown Worldwide (ID = 1888654) Radio FM Radio ; Unknown Worldwide (ID = 1888655) Radio
Use red slider bar for more.
FM Radio ; Unknown Worldwide (ID = 1888652) Radio
Unknown Worldwide: FM Radio [Radio] ID = 1888652 1400x994
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Radio, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1992 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SC9018 2SC9018 2SC9018 2SC9018 S9013 SS9012 S9014 S9014
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / R6: 3 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 2.5 cm = 1 inch
Power out
from Radiomuseum.org Model: FM Radio - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 144 x 78 x 37 mm / 5.7 x 3.1 x 1.5 inch
Notes

Transistor-Taschenradio für UKW-Empfang; 43 cm Teleskopantenne; 2 dynamische Miniaturlautsprecher; Kopfhöreranschluß (3,5 mm Klinkenbuchse).
BZT Zulassung durch Centron Laboratories Ltd..

Net weight (2.2 lb = 1 kg) 0.165 kg / 0 lb 5.8 oz (0.363 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
