Franklin (Grand Piano) (Japan 903)

Franklin ; Franklin, L.K., Co., (ID = 1052487) Radio Franklin ; Franklin, L.K., Co., (ID = 1052488) Radio
Franklin ; Franklin, L.K., Co., (ID = 1052489) Radio Franklin ; Franklin, L.K., Co., (ID = 1052490) Radio
Franklin ; Franklin, L.K., Co., (ID = 1052491) Radio Franklin ; Franklin, L.K., Co., (ID = 1052492) Radio
Franklin ; Franklin, L.K., Co., (ID = 1052493) Radio Franklin ; Franklin, L.K., Co., (ID = 1052494) Radio
Franklin ; Franklin, L.K., Co., (ID = 1419313) Radio Franklin ; Franklin, L.K., Co., (ID = 1419314) Radio
Use red slider bar for more.

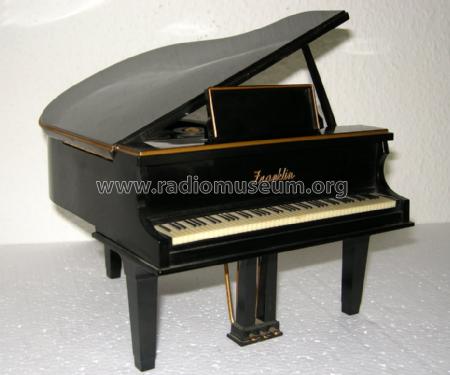

Franklin ; Franklin, L.K., Co., (ID = 1052487) Radio
Franklin, L.K., Co.,: Franklin [Radio] ID = 1052487 933x777
Select picture or schematic to display from thumbnails on the right and click for download.
For model Franklin (Grand Piano) (Japan 903), Franklin, L.K., Co., Inc.; Los Angeles CA:
Franklin (Grand Piano) black

Country:  United States of America (USA)
Manufacturer / Brand:  Franklin, L.K., Co., Inc.; Los Angeles CA
Year: 1975 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Franklin - Franklin, L.K., Co., Inc.; Los
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 6.5 x 4.5 x 7 inch / 165 x 114 x 178 mm
Notes

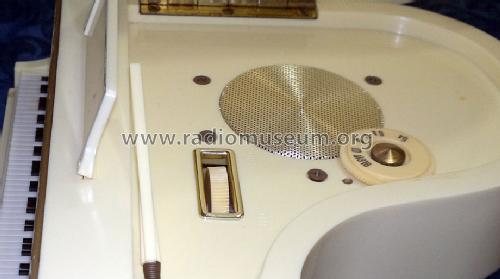

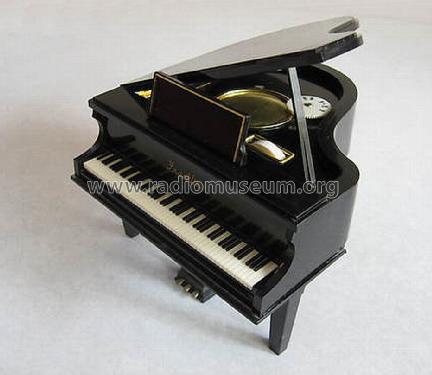

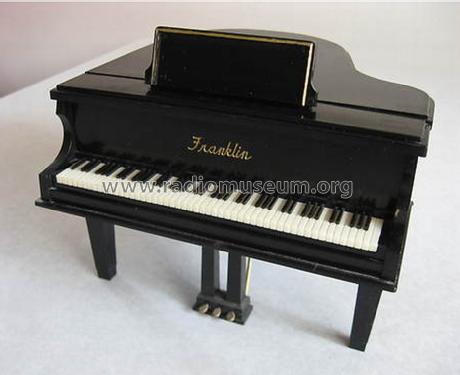

Franklin; Radio shaped as ivory or black colored piano, controls below the lid. It is a Japan export model

See also:

Made in Japan 903

Net weight (2.2 lb = 1 kg) 0.530 kg / 1 lb 2.7 oz (1.167 lb)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Franklin, L.K., Co., Inc.; Los Angeles CA
Here you find 6 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
