Geigerzähler DP-66M

Geigerzähler DP-66M; Unknown Worldwide (ID = 1914922) Equipment

Geigerzähler DP-66M; Unknown Worldwide (ID = 1915630) Equipment
Geigerzähler DP-66M; Unknown Worldwide (ID = 1914925) Equipment Geigerzähler DP-66M; Unknown Worldwide (ID = 1914924) Equipment
Geigerzähler DP-66M; Unknown Worldwide (ID = 1914926) Equipment Geigerzähler DP-66M; Unknown Worldwide (ID = 1914927) Equipment
Geigerzähler DP-66M; Unknown Worldwide (ID = 1914923) Equipment Geigerzähler DP-66M; Unknown Worldwide (ID = 1915631) Equipment
Use red slider bar for more.
Geigerzähler DP-66M; Unknown Worldwide (ID = 1914925) Equipment
Unknown Worldwide: Geigerzähler DP-66M [Equipment] ID = 1914925 1400x1484

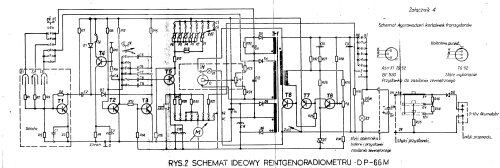

Select picture or schematic to display from thumbnails on the right and click for download.
For model Geigerzähler DP-66M, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1971 ? Category: Service- or Lab Equipment
Valves / Tubes 3: DOB-50 DOB-80 СТС-5
Semiconductors (the count is only for transistors) 8:
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries / 3 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Geigerzähler DP-66M - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 175 x 105 mm / 3.9 x 6.9 x 4.1 inch
Notes

Geigerzähler des Polnischen Militärs
zur Beta und Gammastraheln messung. Auserdem besitzt das Gerät eine Ladebuchse zum Laden von Dosimetern des Typs DKP-50.

Zur Messung sind drei Zahlrohlrohre DOB-50 , DOB-80 , STS-5 vorhanden.

Es sind 6 Messbereiche umschaltbar:

5      - 200 R/h
0,5   - 5     R/h
0,05 - 0,5  R/h
5      - 50   mR/h
0,5   - 5     mR/h
0,05 - 0,5  mR/h

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Dennis Jaroschek. See "Data change" for further contributors.
