Hawk TR-301
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 316008
image sent in by member Giuseppe Tedesco
image sent in by member Giuseppe Tedesco
image sent in by member Giuseppe Tedesco
image sent in by member Giuseppe Tedesco
Click on the schematic thumbnail to request the schematic as a free document.

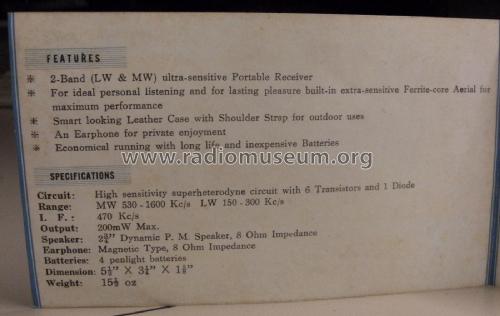

- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- Power out
- 0.2 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Hawk TR-301 - Unknown - CUSTOM BUILT: Japan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 5.5 x 3.25 x 1.625 inch / 140 x 83 x 41 mm
- Notes
-

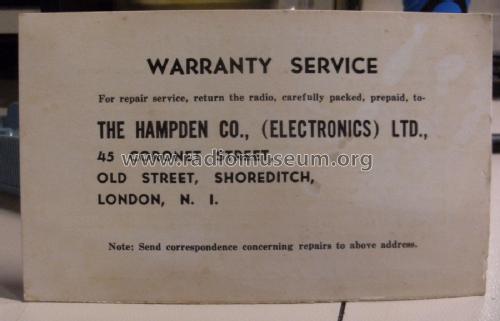

Imported and marketed by The Hampden Co., (Electronics), made in Japan.
- Net weight (2.2 lb = 1 kg)
- 0.97 lb (0 lb 15.5 oz) / 0.440 kg
- Author
- Model page created by Giuseppe Tedesco. See "Data change" for further contributors.
