• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 284065

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / UM-3: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

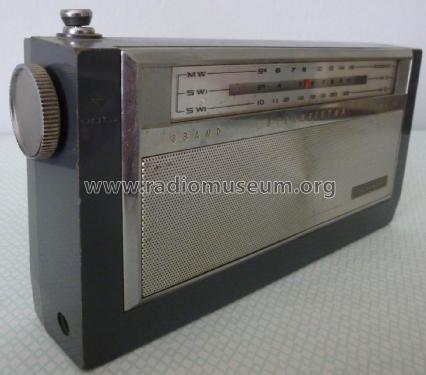

• Model: Highwave 3 Band 8 Transistor Radio - Unknown - CUSTOM BUILT: Japan

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 202 x 130 x 43 mm / 8 x 5.1 x 1.7 inch

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Author
• Model page created by Piotr Paszkowski. See "Data change" for further contributors.
