Hy-Lite De-Luxe All Solid State E164

• Country
• Hong Kong

• Manufacturer / Brand
• Dreamland Electronics Manufactory; Hong Kong

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126192

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Hy-Lite De-Luxe All Solid State E164 - Dreamland Electronics

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 68 x 116 x 33 mm / 2.7 x 4.6 x 1.3 inch

• Notes

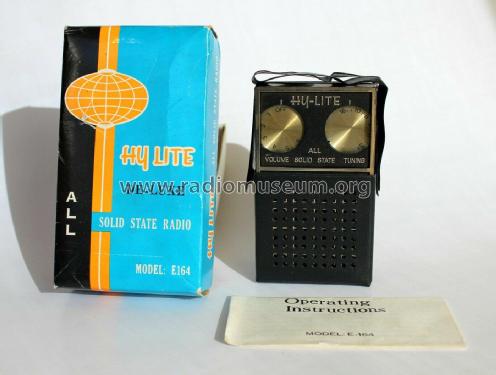

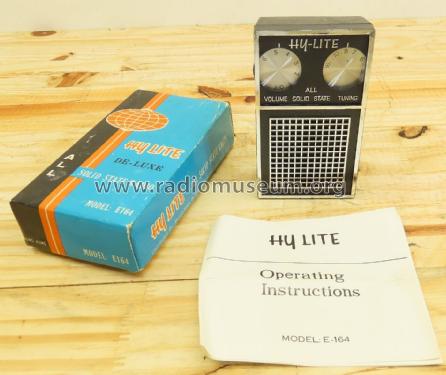

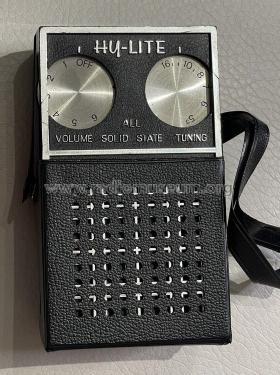

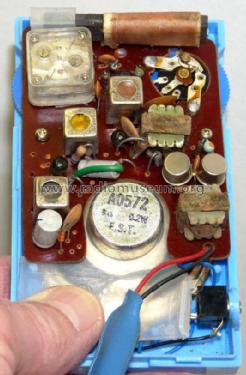

• Hy-Lite De-Luxe All Solid State E164. Tuning and volume circular dials, various colors.

  Sold in cardboard box with earphone, case, and battery. Hong Kong export standard model.

  See similar models listed under Panorama De-Luxe All Solid State.

• Net weight (2.2 lb = 1 kg)
• 0.170 kg / 0 lb 6 oz (0.374 lb)
