• Country
• France

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: France (INCONNU)

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 282646

• Number of Tubes
• 5

• Valves / Tubes

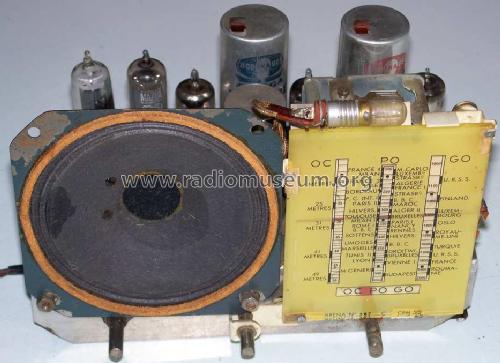

• 12BE6 12BA6 12AV6 50B5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

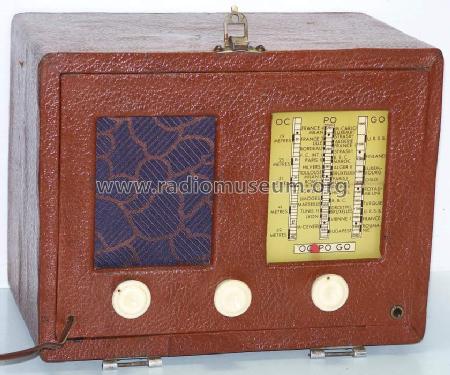

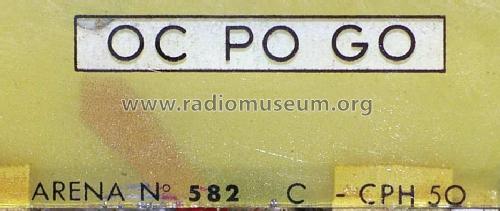

• Model: Inconnu - Unknown 47 Cadran Arena 582 C-CPH50 - Unknown - CUSTOM BUILT: France

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 215 x 170 x 155 mm / 8.5 x 6.7 x 6.1 inch

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Author
• Model page created by Roberto Gabba. See "Data change" for further contributors.

• Other Models

• Here you find 269 models, 253 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
