For model Inconnu - Unknown 71 Cadran Arena 5046, Unknown - CUSTOM BUILT: France (INCONNU)

Country:  France
Manufacturer / Brand:  Unknown - CUSTOM BUILT: France (INCONNU)
Year: 1938 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EK2 EF5 EB4 EF6 EM1 EF6 EL3 EL3 1883
Main principle Superheterodyne (common); 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 8.2 W (unknown quality)
from Radiomuseum.org Model: Inconnu - Unknown 71 Cadran Arena 5046 - Unknown - CUSTOM BUILT: France
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 385 x 330 mm / 23.2 x 15.2 x 13 inch
Notes

Grob-Feintrieb-Skala; Gegentaktendstufe mit Klangregler und Sprachschalter (hinten).

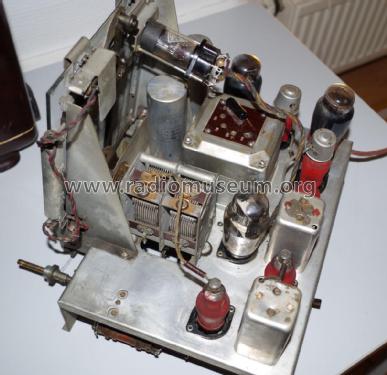

Industriemäßig hergestelltes Chassis ohne Herstellerhinweis mit Platz für HF-Vorstufe.

Skala Arena für Drehko 5046 6046 7046; Lautsprecher GÉ-GO.

Model page created by Rainer Jehl. See "Data change" for further contributors.
