International De Luxe HiFi AK-660

International De Luxe HiFi AK-660; Unknown - CUSTOM (ID = 1477036) Radio International De Luxe HiFi AK-660; Unknown - CUSTOM (ID = 1477037) Radio
International De Luxe HiFi AK-660; Unknown - CUSTOM (ID = 1039535) Radio International De Luxe HiFi AK-660; Unknown - CUSTOM (ID = 1039536) Radio
International De Luxe HiFi AK-660; Unknown - CUSTOM (ID = 1039539) Radio International De Luxe HiFi AK-660; Unknown - CUSTOM (ID = 1039538) Radio
Use red slider bar for more.
International De Luxe HiFi AK-660; Unknown - CUSTOM (ID = 1477036) Radio
Unknown - CUSTOM: International De Luxe HiFi AK-660 [Radio] ID = 1477036 618x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model International De Luxe HiFi AK-660, Unknown - CUSTOM BUILT: Japan

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.15 W (max.)
from Radiomuseum.org Model: International De Luxe HiFi AK-660 - Unknown - CUSTOM BUILT: Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 106 x 30 mm / 2.6 x 4.2 x 1.2 inch
Notes International De Luxe HiFi Transistor Radio AK-660;

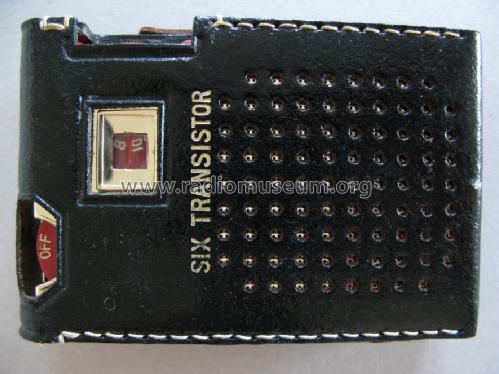

Jack for headphone. Suitable leather case included. Made in Japan.
Literature/Schematics (1) Külföldi tranzisztoros készülékek adatai, Budapest 1964, MHSZ

Model page created by Giuliano Strim. See "Data change" for further contributors.
