Invicta 10 Transistor 10DL

Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168371) Radio Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168372) Radio
Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168373) Radio Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168374) Radio
Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168375) Radio Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168377) Radio
Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168378) Radio Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2346943) Radio
Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2346944) Radio Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2346945) Radio
Use red slider bar for more.
Invicta 10 Transistor 10DL; Unknown - CUSTOM (ID = 2168371) Radio
Unknown - CUSTOM: Invicta 10 Transistor 10DL [Radio] ID = 2168371 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Invicta 10 Transistor 10DL, Unknown - CUSTOM BUILT: Hong Kong (HK):

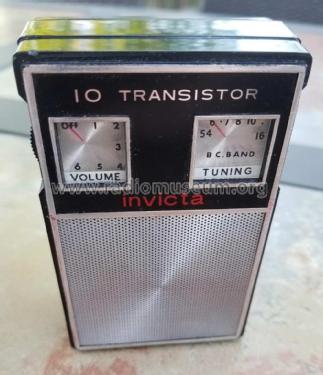

Frontal view

Country:  Hong Kong
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Hong Kong (HK)
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SA296 2SB267 unknown_tr
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Invicta 10 Transistor 10DL - Unknown - CUSTOM BUILT: Hong
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 72 x 114 x 38 mm / 2.8 x 4.5 x 1.5 inch
Notes

Conelrad Markings (Civil Defense, CD) on the dial at 640 and 1240 kHz.

Not the same manufacturer as Invicta models 7-, 8-, 10PK1 made in Hong Kong. Also not the same manufacturer as Invicta 100, 200 or 300 models made in Japan.

Contains YAOU transistors.

Made in Hong Kong.
