Jaguar T-2026

Jaguar T-2026; Unknown - CUSTOM (ID = 988045) R-Player Jaguar T-2026; Unknown - CUSTOM (ID = 988046) R-Player
Jaguar T-2026; Unknown - CUSTOM (ID = 988047) R-Player
Use red slider bar for more.
Jaguar T-2026; Unknown - CUSTOM (ID = 988045) R-Player

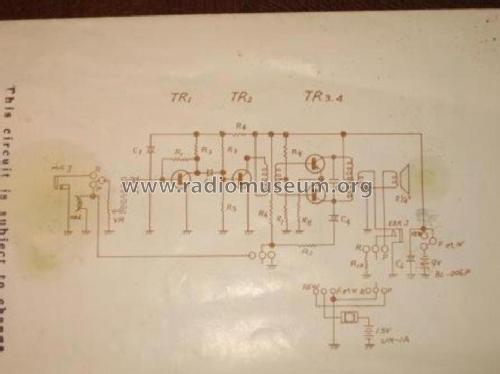

Unknown - CUSTOM: Jaguar T-2026 [R-Player] ID = 988045 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jaguar T-2026, Unknown - CUSTOM BUILT: USA

Country:  United States of America (USA)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: USA
Year: 1962–1964 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Dry Batteries / 2 x 1,5 + 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: Jaguar T-2026 - Unknown - CUSTOM BUILT: USA
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.5 x 2.75 x 6.7 inch / 216 x 70 x 170 mm
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.



All listed radios etc. from Unknown - CUSTOM BUILT: USA
Here you find 266 models, 217 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
