• Country
• Spain

• Manufacturer / Brand
• Estrada, (Janzer); Barcelona

• Year
• 1980 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 195439

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2x1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

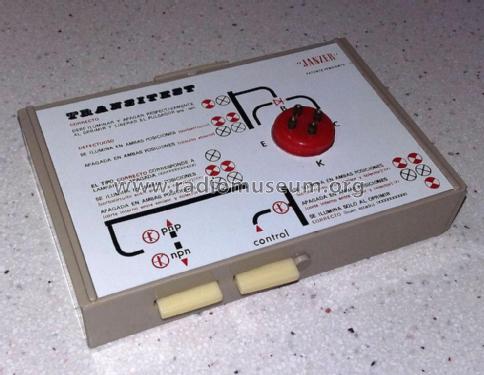

• Model: Transitest - Estrada, Janzer; Barcelona

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 130 x 30 x 850 mm / 5.1 x 1.2 x 33.5 inch

• Notes

• Diode- and Transistor-Tester.

  Se ofrecían puntas suplementarias de cocodrilo al precio de 150 ptas.

• Net weight (2.2 lb = 1 kg)
• 0.134 kg / 0 lb 4.7 oz (0.295 lb)

• Author
• Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.
