John Player Special SWR-017

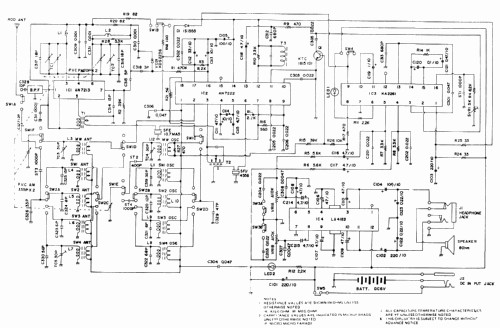

John Player Special SWR-017; Unknown - CUSTOM (ID = 509852) Radio

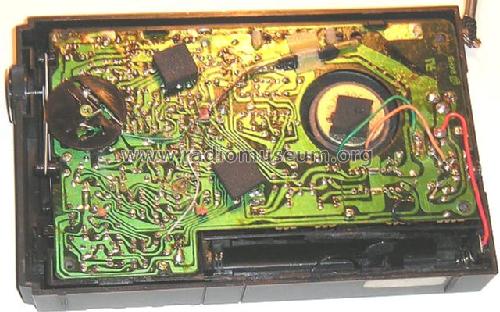

John Player Special SWR-017; Unknown - CUSTOM (ID = 1199483) Radio John Player Special SWR-017; Unknown - CUSTOM (ID = 509851) Radio
John Player Special SWR-017; Unknown - CUSTOM (ID = 1199481) Radio
Use red slider bar for more.
John Player Special SWR-017; Unknown - CUSTOM (ID = 1199483) Radio
Unknown - CUSTOM: John Player Special SWR-017 [Radio] ID = 1199483 719x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model John Player Special SWR-017, Unknown - CUSTOM BUILT: South Korea (ROK)

Country:  South Korea
Manufacturer / Brand:  Unknown - CUSTOM BUILT: South Korea (ROK)
Year: 1983 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 1: KTC1815 AN7213 AN7222 KA2261 LA4182
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: John Player Special SWR-017 - Unknown - CUSTOM BUILT: South
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 120 x 35 mm / 7.1 x 4.7 x 1.4 inch
Notes Weltempfänger mit schwarzem Gehäuse und goldfarbenen Beschriftungen, Logo JPS.
FM-Stereo über Kopfhörer 2 x 80 mW bei 32 Ohm; 4 KW-Bereiche 2.3 - 26 MHz.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 99.00 DM
Source of data - - Data from my own collection

Model page created by Günther Stabe. See "Data change" for further contributors.
