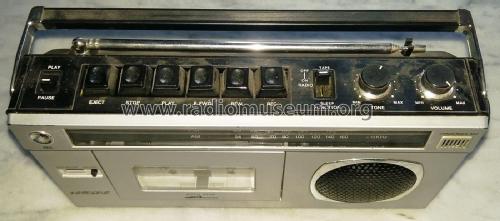

Kingsonic Radio Cassette Recorder CR-720

Kingsonic Radio Cassette Recorder CR-720; Unknown - CUSTOM (ID = 2270406) Radio Kingsonic Radio Cassette Recorder CR-720; Unknown - CUSTOM (ID = 2270407) Radio
Kingsonic Radio Cassette Recorder CR-720; Unknown - CUSTOM (ID = 2270408) Radio Kingsonic Radio Cassette Recorder CR-720; Unknown - CUSTOM (ID = 2270409) Radio
Use red slider bar for more.
Kingsonic Radio Cassette Recorder CR-720; Unknown - CUSTOM (ID = 2270406) Radio
Unknown - CUSTOM: Kingsonic Radio Cassette Recorder CR-720 [Radio] ID = 2270406 1400x845
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kingsonic Radio Cassette Recorder CR-720, Unknown - CUSTOM BUILT: South Korea (ROK)

Country:  South Korea
Manufacturer / Brand:  Unknown - CUSTOM BUILT: South Korea (ROK)
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Batteries / addl. power jack / 6 x 1.5 / DC 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Kingsonic Radio Cassette Recorder CR-720 - Unknown - CUSTOM BUILT: South
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 220 x 60 mm / 9.8 x 8.7 x 2.4 inch
Notes

Wave bands:
FM: 88 - 108 MHz
AM 535 - 1605 kHz

Recording indicator LED, mechanical counter. Condenser microfone, jack for external mic with remote control function. Jack for external DC supply 9 V. Sleep function.

Telescopic antenna.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
