• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215009

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Majestic Transistor 11 FX-408 - Unknown - CUSTOM BUILT: Japan

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8.5 x 4.5 x 1.9 inch / 216 x 114 x 48 mm

• Notes

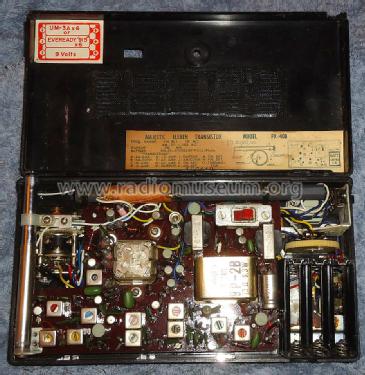

• Majestic Solid State Portable AM/FM Radio Model Eleven Transistor FX-408.
  Tuning Range FM 86,5-108 MC, AM 535-1605 KC.
  Telescopic antenna (24,5"), Speaker (Sharp 9P-2B, 13 ohms, 0,3 watt).

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
