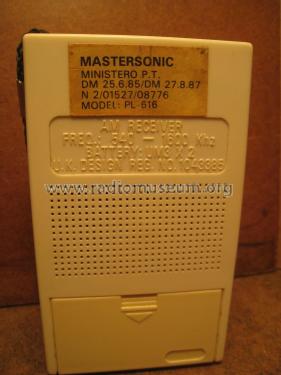

Mastersonic AM Receiver Gran Campione Dixan PL 616
Use red slider bar for more.
Mastersonic: Mastersonic AM Receiver Gran Campione Dixan PL 616 [Radio] ID = 2163736 1289x1639
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1980 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Storage and/or dry batteries / 2 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch |
| Power out | 0.1 W (unknown quality) |
| from Radiomuseum.org | Model: Mastersonic AM Receiver Gran Campione Dixan PL 616 - Mastersonic Ultrasonic |
| Material | Modern plastics (no Bakelite or Catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 65 x 110 x 25 mm / 2.6 x 4.3 x 1 inch |
| Notes | MASTERSONIC mod. PL 616, AM Receiver Gran Campione Dixan, controllo volume, maniglia di trasporto, freq.: 540 kHz/1600 kHz. |
| Net weight (2.2 lb = 1 kg) | 0.150 kg / 0 lb 5.3 oz (0.33 lb) |
Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
