Matrix MA 15

Matrix MA 15; Unknown - CUSTOM (ID = 2134207) Ampl/Mixer Matrix MA 15; Unknown - CUSTOM (ID = 2134209) Ampl/Mixer

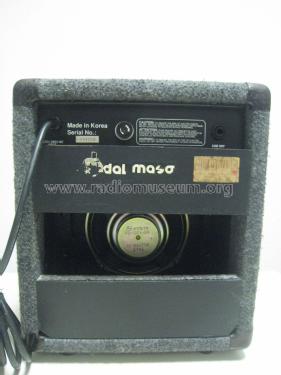

Matrix MA 15; Unknown - CUSTOM (ID = 2134211) Ampl/Mixer Matrix MA 15; Unknown - CUSTOM (ID = 2134212) Ampl/Mixer
Use red slider bar for more.
Matrix MA 15; Unknown - CUSTOM (ID = 2134207) Ampl/Mixer
Unknown - CUSTOM: Matrix MA 15 [Ampl/Mixer] ID = 2134207 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Matrix MA 15, Unknown - CUSTOM BUILT: South Korea (ROK)

Country:  South Korea
Manufacturer / Brand:  Unknown - CUSTOM BUILT: South Korea (ROK)
Year: 2000 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Guitar Amplifier
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 15 W (unknown quality)
from Radiomuseum.org Model: Matrix MA 15 - Unknown - CUSTOM BUILT: South
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 320 x 175 mm / 10.6 x 12.6 x 6.9 inch
Notes

MATRIX - A Kaman Product - mod. MA 15 - ampilificatore per chitarra - controllo gain/volume/treble/bass - ingressi input / phone - led accensione - line out - maniglia di trasporto - protezioni angoli cassa acustica in lamiera.

Made in Korea.

Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
