Matsui T-8030

Matsui T-8030; Dixons; brand (ID = 747986) TV Radio Matsui T-8030; Dixons; brand (ID = 747982) TV Radio
Matsui T-8030; Dixons; brand (ID = 747983) TV Radio Matsui T-8030; Dixons; brand (ID = 747984) TV Radio
Matsui T-8030; Dixons; brand (ID = 747985) TV Radio Matsui T-8030; Dixons; brand (ID = 747988) TV Radio
Matsui T-8030; Dixons; brand (ID = 747989) TV Radio
Use red slider bar for more.

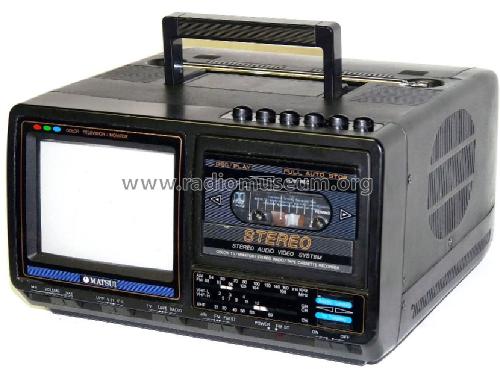

Matsui T-8030; Dixons; brand (ID = 747986) TV Radio
Dixons; brand: Matsui T-8030 [TV Radio] ID = 747986 830x613
Select picture or schematic to display from thumbnails on the right and click for download.
For model Matsui T-8030, Dixons; (brand)

Country:  Europe
Manufacturer / Brand:  Dixons; (brand)
Year: 1988 ?? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1: 15CAC56X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 10 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Matsui T-8030 - Dixons; brand
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 276 x 160 x 280 mm / 10.9 x 6.3 x 11 inch

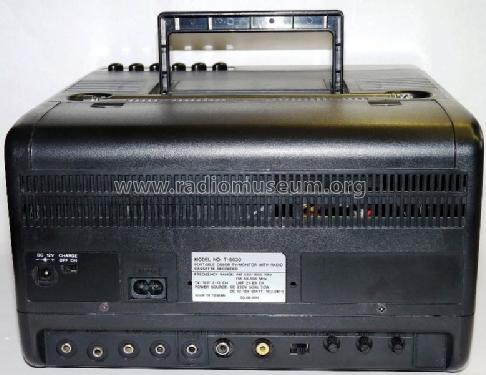

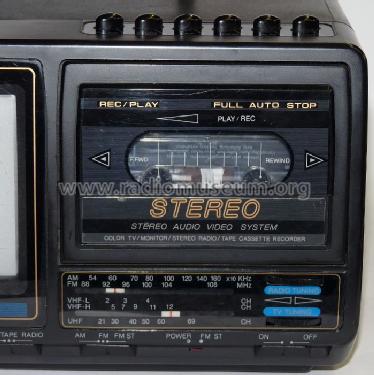

Notes Portable Color TV / Monitor with Stereo Radio Cassette Recorder. Bilddiagonale 14 cm. Frequenzbereiche: VHF-L CH 2..4, VHF-H CH 5..12, UHF CH 21..69, FM 88..108 MHz, MW 525..1605 kHz. Eingebaute 5 tlg. Teleskopantenne (85 cm). Ext. Antenne (75 Ohm) über Klinkenbuchse 3,5 mm. Ext. Anschlüsse für 2 Mikrofone. Anschlußmöglichkeit für 2 ext. Lautsprecher (je 1,5 Watt/8 Ohm) und Kopfhörer. Made in Taiwan 50-08-1014
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
