Meisterton FM/AM 9 Transistor 1964

Unknown - CUSTOM BUILT: Japan

  • Year
  • 1964 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 160213

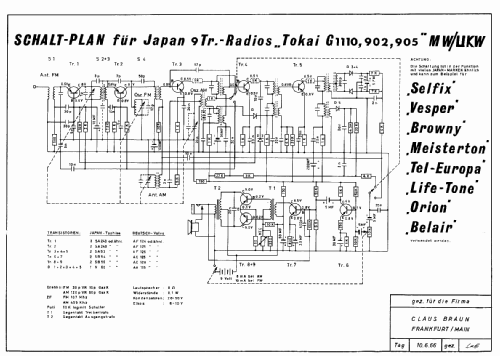

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Meisterton FM/AM 9 Transistor 1964 - Unknown - CUSTOM BUILT: Japan
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 73 x 118 x 36 mm / 2.9 x 4.6 x 1.4 inch
  • Notes
  • Meisterton FM/AM 9 Transistor with AFC, 1964;
    FM: 88 - 108 MHz,
    AM: 535 - 1605 kHz,
    separate AM & FM dial window, chrome front, earphones jack, country of origin unknown.
  • Net weight (2.2 lb = 1 kg)
  • 0.290 kg / 0 lb 10.2 oz (0.639 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
