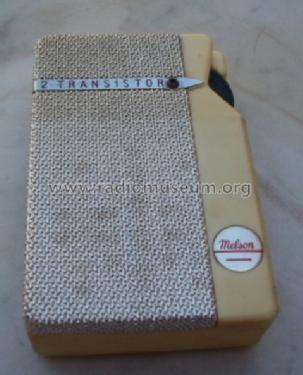

Melson 2 Transistor Boy's Radio ; Unknown - CUSTOM (ID = 761363) Radio
Unknown - CUSTOM: Melson 2 Transistor Boy's Radio [Radio] ID = 761363 480x593
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melson 2 Transistor Boy's Radio vertical, Unknown - CUSTOM BUILT: Japan

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle TRF with diode detector; Reflex
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out 0.05 W (unknown quality)
from Radiomuseum.org Model: Melson 2 Transistor Boy's Radio [vertical] - Unknown - CUSTOM BUILT: Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 0 x 3.25 x 0 inch / 0 x 83 x 0 mm
Notes

See also Melson 2 Transistor Boy's Radio in horizontal shape.

Made in Japan.

As written in the guarantee sheet of the Mellinger Co., over 40.000 of this sets has been sold.

Net weight (2.2 lb = 1 kg) 6 lb 0 oz (6 lb) / 2.724 kg
Mentioned in Advertisment in "Popular Science" Jan. 1957

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
