• Year
  • 1928 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 91535

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Unknown 1 - Miko Radio AB; Stockholm
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 370 x 180 x 195 mm / 14.6 x 7.1 x 7.7 inch
  • Notes

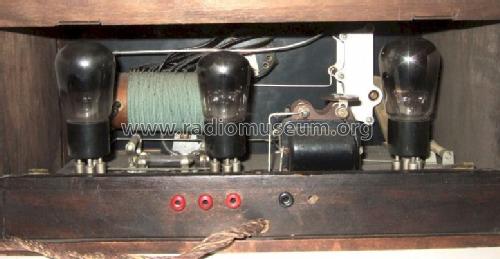

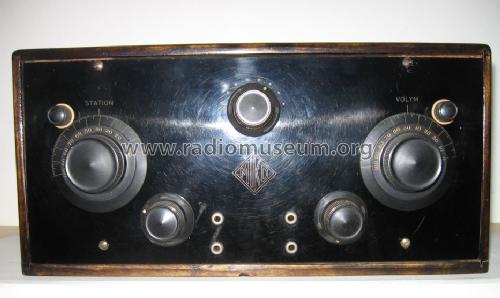

  • Philips Tubes, MIKO Logo on Front.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
