Omscolite (wedge)

Omscolite ; Omscolite Corp.; (ID = 2148285) Radio
Omscolite ; Omscolite Corp.; (ID = 2148286) Radio Omscolite ; Omscolite Corp.; (ID = 2148288) Radio
Omscolite ; Omscolite Corp.; (ID = 2148287) Radio Omscolite ; Omscolite Corp.; (ID = 2148291) Radio
Omscolite ; Omscolite Corp.; (ID = 2148296) Radio Omscolite ; Omscolite Corp.; (ID = 2148297) Radio

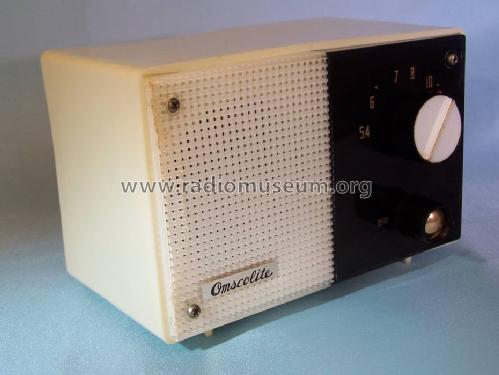

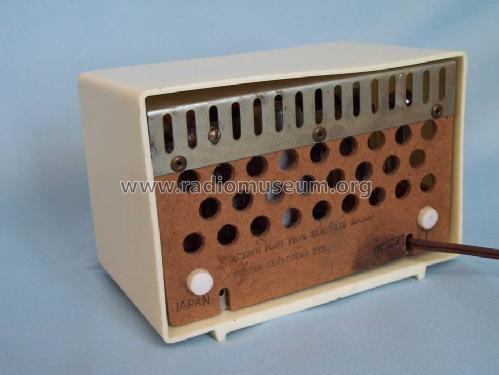

Omscolite ; Omscolite Corp.; (ID = 1080029) Radio Omscolite ; Omscolite Corp.; (ID = 1080030) Radio
Use red slider bar for more.
Omscolite ; Omscolite Corp.; (ID = 2148286) Radio
Omscolite Corp.;: Omscolite [Radio] ID = 2148286 520x407
Select picture or schematic to display from thumbnails on the right and click for download.
For model Omscolite (wedge), Omscolite Corp.; Philadelphia, PA

Country:  United States of America (USA)
Manufacturer / Brand:  Omscolite Corp.; Philadelphia, PA
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Omscolite - Omscolite Corp.; Philadelphia,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 6.5 x 4 x 4 inch / 165 x 102 x 102 mm

Model page created by Flavio Chavez. See "Data change" for further contributors.



All listed radios etc. from Omscolite Corp.; Philadelphia, PA
Here you find 11 models, 11 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
