Orbiter 85

Orbiter 85; Unknown Worldwide (ID = 719996) Radio Orbiter 85; Unknown Worldwide (ID = 719993) Radio
Orbiter 85; Unknown Worldwide (ID = 719995) Radio Orbiter 85; Unknown Worldwide (ID = 719994) Radio

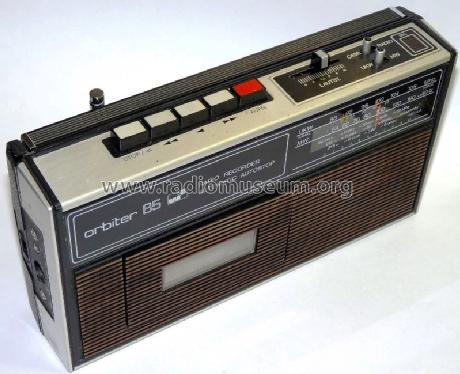

Orbiter 85; Unknown Worldwide (ID = 719997) Radio Orbiter 85; Unknown Worldwide (ID = 719999) Radio
Orbiter 85; Unknown Worldwide (ID = 720001) Radio
Use red slider bar for more.
Orbiter 85; Unknown Worldwide (ID = 719996) Radio
Unknown Worldwide: Orbiter 85 [Radio] ID = 719996 776x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orbiter 85, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Orbiter 85 - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 170 x 75 mm / 11.4 x 6.7 x 3 inch
Notes Mono-Radio-Kassettenrecorder, Frequenzbereiche: FM 87,5-108 MHz, AM 515-1605 kHz, Automatic-Stop Funktion, eingebautes Electretmikrofon, Anschluß für ext. Mikrofon/Remote, Eingang für Tonband/Plattenspieler über 5-pol Din Buchse Kopfhöreranschluß (Klinke 3,5 mm), MW-Skala mit Sendernamen, versenkbarer Tragegriff, 7-tlg. Teleskopantenne (80 cm), Ferritantenne (10 cm), FTZ-Prüfnummer: 154/29
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
