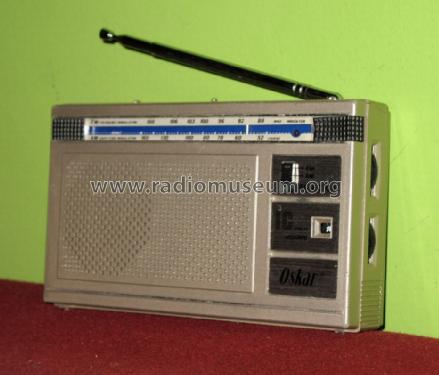

Oskar; where?: IC [Radio] ID = 1112753 933x796
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC, Oskar; (where?):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hong Kong
Manufacturer / Brand:  Oskar; (where?)
Year: 1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: 2SC1417 2SC1417 KA22427 or. TDA1083 or. ULN2204
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.25 W (0.28 W max.)
from Radiomuseum.org Model: IC - Oskar; where?
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 155 x 95 x 33 mm / 6.1 x 3.7 x 1.3 inch
Notes

British Design Reg. No.1001652. IF: 455 or 465 kHz. Two transistors, one diode and one IC TDA1083 or ULN2204 or KA22427.

Net weight (2.2 lb = 1 kg) 0.290 kg / 0 lb 10.2 oz (0.639 lb)
Literature/Schematics (1) -- Schematic
Literature/Schematics (2) -- Original prospect or advert
