Oscillograf - Осциллограф N313 - Н313

Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 1089422) Equipment

Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 1089424) Equipment

Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 1089425) Equipment

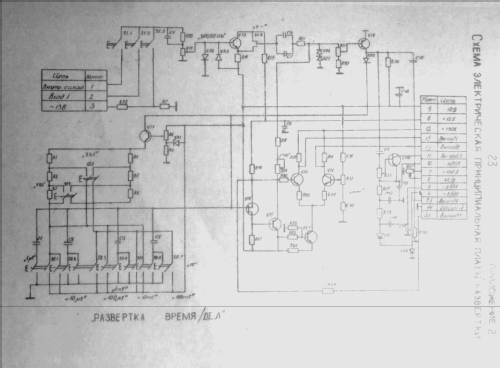

Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2168248) Equipment

Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2168249) Equipment

Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2168250) Equipment

Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2168251) Equipment
Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2380327) Equipment Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2380329) Equipment
Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2380330) Equipment Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 918472) Equipment
Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 918473) Equipment Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 918474) Equipment
Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 918475) Equipment Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2168234) Equipment
Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2168235) Equipment Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2168236) Equipment
Use red slider bar for more.
Oscillograf - Осциллограф N313 - Н313; ZIP, Krasnodar, (ID = 2380327) Equipment
ZIP, Krasnodar,: Oscillograf - Осциллограф N313 - Н313 [Equipment] ID = 2380327 1400x586
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscillograf - Осциллограф N313 - Н313, ZIP, Krasnodar, Measurement Instruments Works; Krasnodar

Country:  Soviet Union
Manufacturer / Brand:  ZIP, Krasnodar, Measurement Instruments Works; Krasnodar
Year: 1977–1984 Category: Service- or Lab Equipment
Valves / Tubes 1: 5ЛО2И or 5ЛО38
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscillograf - Осциллограф N313 - Н313 - ZIP, Krasnodar, Measurement
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 248 x 70 x 255 mm / 9.8 x 2.8 x 10 inch
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 125.00 RUB
Mentioned in Heft 6;1985; Seite 340 (Gerätebeschreibung)
Literature/Schematics (1) Radio und Fernsehen (DDR) (Heft 6;1985; Seite 378 (Schaltbild))

Model page created by Michael Mischke. See "Data change" for further contributors.



All listed radios etc. from ZIP, Krasnodar, Measurement Instruments Works; Krasnodar
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
ZIP, Krasnodar,: Oscillograf - Осциллограф N313 - Н313
Threads: 1 | Posts: 3
Hits: 2255     Replies: 2
unknown: N313 {Н313}; Oszillograf
Gabor Dvorzsak
06.Nov.11
  1

Hi everybody!

I have 2 pcs of this scope, one from 1980, one from 1979, and both of them contains a 5LO2I CRT, not 5LO38 which is shown on this page. 5LO38 has a completely different, octal-like bakelite base, while 5LO2I is a full-glass tube. The tube socket shown in this pictures is looks like exactly the ones in my two N313s, so nearly sure there is 5LO2I in this set too. I have the original service manual in pdf, and in the parts list there is also 5LO2I. (see the third line from the bottom)

So I suggest to change the tube type on the page to 5LO2I. Or there is anyone who have N313 scope with 5LO38 CRT? It's not impossible that it's manufactured with both tube types.

Best regards,

Gabor Dvorzsak

Attachments

Gabriel Toth
06.Nov.11
  2

Dear Gabor,

if you have a look to the origin manual, you will find tube 5lo2i, but if you search for another description in SU journal Radio N.4 1978, you will find already tube 5lo38i.

My opinion is that during production there was a change in used tube., nothing unusual.

BR

Gabriel



Gabor Dvorzsak
07.Nov.11
  3

Dear Gabriel,

Thank you for the information. Yes, probably the unit was made with both tube types during production. I think production started in 1976, and ended in the mid '80s, and most of the pieces are sold after 1979 - at least in Hungary. I have seen some of this oscilloscopes, but none of them made before 1979, and four of them surely equipped with 5LO2I.

So, if it is possible, I suggest both CRT types to be shown on the type's page.

Best Regards,

Gabor


ZIP, Krasnodar,: Oscillograf - Осциллограф N313 - Н313
End of forum contributions about this model
