Panavox AM/FM Receiver Solid State

Panavox AM/FM Receiver Solid State ; Unknown - CUSTOM (ID = 1911178) Radio Panavox AM/FM Receiver Solid State ; Unknown - CUSTOM (ID = 1911179) Radio

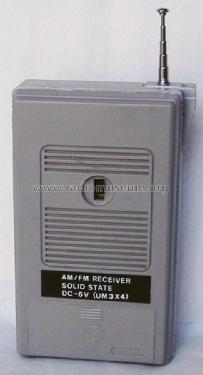

Panavox AM/FM Receiver Solid State ; Unknown - CUSTOM (ID = 1911180) Radio Panavox AM/FM Receiver Solid State ; Unknown - CUSTOM (ID = 1911181) Radio
Panavox AM/FM Receiver Solid State ; Unknown - CUSTOM (ID = 1911182) Radio
Use red slider bar for more.

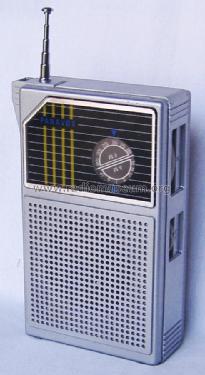

Panavox AM/FM Receiver Solid State ; Unknown - CUSTOM (ID = 1911178) Radio
Unknown - CUSTOM: Panavox AM/FM Receiver Solid State [Radio] ID = 1911178 492x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panavox AM/FM Receiver Solid State, Unknown - CUSTOM BUILT: Hong Kong (HK)

Country:  Hong Kong
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Hong Kong (HK)
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Panavox AM/FM Receiver Solid State - Unknown - CUSTOM BUILT: Hong
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 83 x 150 x 44 mm / 3.3 x 5.9 x 1.7 inch
Notes

AM/FM Taschenempfänger mit 39cm Teleskopantenne und Trageschlaufe oben; Abstimmung und Lautstärkeregler rechts; Bandwahlschalter auf Rückseite.

Empfangsbereiche:
FM: 87,5 - 108MHz
MW: 530 - 1620kHz

Net weight (2.2 lb = 1 kg) 0.264 kg / 0 lb 9.3 oz (0.581 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
