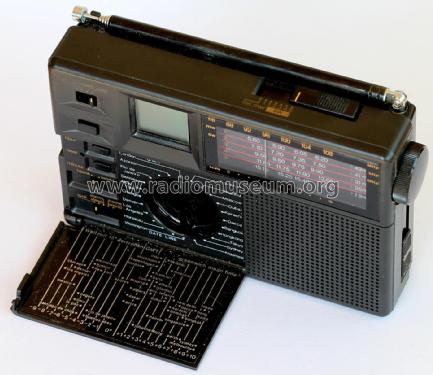

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W

Unknown to us - Worldwide

Data

Forum

Pictures

Collections

Country
Worldwide

Manufacturer / Brand
Unknown to us - Worldwide

Year
1990 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
230395

Schematics

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990645) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (3)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990646) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (3)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990632) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (1)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990642) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (1)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990634) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (1)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990643) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (1)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1389232) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (2)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1389233) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (2)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1389234) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (2)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1389235) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (2)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990638) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (1)

Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W; Unknown to us - (ID = 1990640) Radio — Unknown to us - Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast, more than 2 SW bands plus FM or UHF.

Power type and voltage
Dry Batteries / AA: 2 x 1,5 & (Clock)1 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Panopus 7-band world time handy radio fm/mw/sw 1-5 R-35W - Unknown to us - Worldwide

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
140 x 95 x 35 mm / 5.5 x 3.7 x 1.4 inch

Notes
LCD alarm clock.

Similar radios: Siemens RK-702 and Grundig Traveller II

Net weight (2.2 lb = 1 kg)
0.280 kg / 0 lb 9.9 oz (0.617 lb)

Author
Model page created by a member from A. See "Data change" for further contributors.
