• Country
• Germany

• Manufacturer / Brand
• PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg

• Year
• 2007 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 209038

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

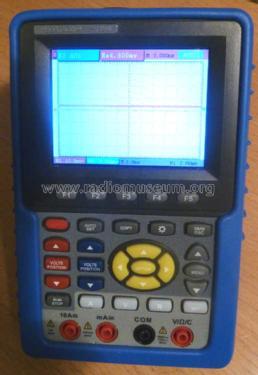

• Model: Peaktech Digitalspeicheroszilloskop/DMM P1195 - PeakTech GmbH, Heinz-Günther

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 115 x 180 x 40 mm / 4.5 x 7.1 x 1.6 inch

• Notes
• Multifunktionsgerät, digitales Speicheroszilloskop 2 Kanal 100MHz. Abtastrate 500 M/s pro Kanal. 9,7 cm Farb-LCD-Display in VGA-Auflösung 640x480 Pixel. Multimeter für Spannung, Strom, Widerstand, Kapazität. Betrieb mit externem Netz-ladegerät oder eingebautem Li-Ion-Akku 7,4V 3500mAh. USB-Schnittstelle. Software kompatibel zu Windows 2000, XP und Vista.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Price in first year of sale
• 766.00 Euro

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
