• Country
• France

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: France (INCONNU)

• Year
• 1932 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 272122

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• DH DH DPT_5pin 0A20-170-210

• Main principle
• TRF with regeneration; Reaction

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 130 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 28 cm = 11 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Poste artisanale 02 - Unknown - CUSTOM BUILT: France

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 390 x 485 x 250 mm / 15.4 x 19.1 x 9.8 inch

• Notes

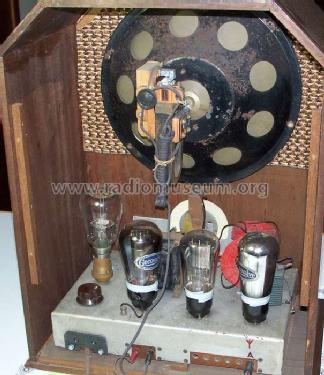

• Poste de fabrication artisanale à trois lampes un rectificateur au sélénium et un ballast.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Author
• Model page created by Roberto Gabba. See "Data change" for further contributors.
