• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286509

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC613 OC612 OC612 OC602 OC602 OC602 K5/2

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

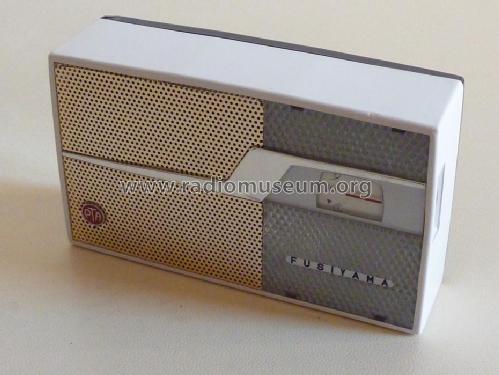

• Model: PTA Fusiyama Akkord 559 - Unknown - CUSTOM BUILT: Japan

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 89 x 42 mm / 5.9 x 3.5 x 1.7 inch

• Notes

• Sold in Italy, probably assembled in Japan. Uses German made chassis (completely equipped circuit board) Akkord 559, intended for a 6 transistor / MW only version of model Pippo, the Pippo 6

  Telefunken equivalent transistors were used: OC613 OC612 OC612 OC602 OC602 OC602



• Net weight (2.2 lb = 1 kg)
• 0.450 kg / 0 lb 15.9 oz (0.991 lb)

• Mentioned in
• Antique Radio Magazine - Italy, Club Antique Radio Magazine (Lello Salvatore: Fusiyama una Akkord con il kimono ARM 126 p.40-44)

FUSIYAMA - una Akkord con il kimono (Gentile concessione L.Salvatore/ARM)

2024 KB

• Documents regarding this model

• Author
• Model page created by Wolfgang Gebert. See "Data change" for further contributors.
