Funkgerät R-130 {Р-130}

Funkgerät R-130 {Р-130}; MILITARY USSR (ID = 2212603) TRX Funkgerät R-130 {Р-130}; MILITARY USSR (ID = 2212604) TRX
Funkgerät R-130 {Р-130}; MILITARY USSR (ID = 983434) TRX Funkgerät R-130 {Р-130}; MILITARY USSR (ID = 983435) TRX
Funkgerät R-130 {Р-130}; MILITARY USSR (ID = 983436) TRX
Use red slider bar for more.
Funkgerät R-130 {Р-130}; MILITARY USSR (ID = 2212603) TRX
MILITARY USSR: Funkgerät R-130 {Р-130} [TRX] ID = 2212603 1400x840
Select picture or schematic to display from thumbnails on the right and click for download.
For model Funkgerät R-130 {Р-130}, MILITARY USSR (different makers for same model):

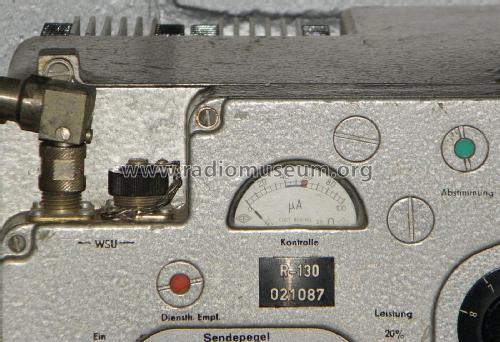

NVA-Gerät mit deutscher Beschriftung

Country:  Soviet Union
Manufacturer / Brand:  MILITARY USSR (different makers for same model)
Year: 1969 ?? Category: Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 63: 1П24Б 1Ж29Б 1Ж24Б ГУ-50
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 26 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Funkgerät R-130 {Р-130} - MILITARY USSR different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 17 x 10 x 12 inch / 432 x 254 x 305 mm
Notes

Funkgerät R-130: militärisches Kurzwellen - Funkgerät, Frequenzbereich 1,5 - 10,99 MHz (Bereich 1: 1,5 - 1,99 MHz, Bereiche 2-10: x,0 - x,99 MHz), 10 programmierbare Fixfrequenzen, Betriebsart Telephonie Einseitenband mit Restträger (A3A), Einseitenband mit vollem Träger (A3H), Telegraphie CW (A1), F1 (nur Sendebetrieb), Ausgangsleistung 12 - 40 Watt.

Stromversorgung vom 26 V -Fahrzeugbordnetz mittels Stromversorgungsgerät BP-UM26 für den Leistungsverstärker.

Antennen: 4 m Panzer - Stabantenne, alternativ Teleskopmast, Langdraht- oder Dipolantenne, Antennenabstimmgerät WSU-A (für Kraftfahrzeuge) resp. WSU-T (für Einbau in Panzer).

Einsatz in Panzern und Führungs - Fahrzeugen der Sowjetarmee und von Streitkräften des Warschauer Pakts (u.a. NVA), das Gerät ersetzte die Geräte R-104M und R-112.

Transceiver R-130: military shortwave transceiver, frequency coverage 1,5 - 10,99 MHz (band 1: 1,5 - 1,99 MHz, band 2 - 10: x,0 - x,99 MHz), ten programmable fixed frequencies,  telephony single sideband with full or reduced carrier (A3A, A3H), telegraphy CW (A1), F1 only transmitting mode, output power 12 - 40 Watts.

Powered from 26 V vehicle battery via BP-UM26 power supply unit.

Antennas: 4 m armoured vehicle rod antenna, alternatively telescopic mast or longwire or dipole antenna. Antenna matching unit WSU-A (for vehicles) and WSU-T (for tanks).

The R-123 has been used by the Soviet Army and Armed Forces of several Warsaw Pact countries in ther tanks and command vehicles, it was used as a replacement to the R-104M and R-112.

Tubes: 4× 1p24b, 32× 1j29b, 25× 1j24b, 2× gu-50. R-130M is the never version with similar specifications.

Net weight (2.2 lb = 1 kg) 45.5 kg / 100 lb 3.5 oz (100.22 lb)
Collectors' prices
Mentioned in Radiotechnika Evkonyve 2006 (H)
Literature/Schematics (1) Nachrichtentechnik der Nationalen Volksarmee, Bd. 1 (pp 192-207)

Model page created by Gabriel Toth. See "Data change" for further contributors.
