• Country
• Spain

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Spain

• Year
• 1931 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 368465

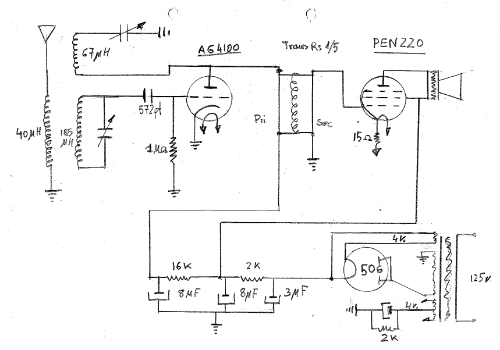

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AG4100 Pen220 506

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radio de tres válvulas con forma de capilla - Unknown - CUSTOM BUILT: Spain

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 360 x 285 x 160 mm / 14.2 x 11.2 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by Lorenzo Moreno Rosillo. See "Data change" for further contributors.
