Inconnu - Unknown 28 Arena?

Unknown - CUSTOM BUILT: France (INCONNU)

  • Year
  • 1938 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 268334

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Inconnu - Unknown 28 Arena? - Unknown - CUSTOM BUILT: France

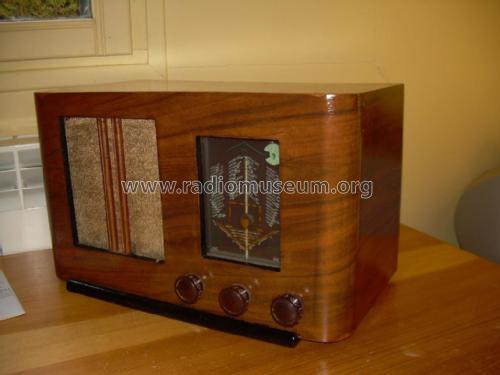

  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 390 x 240 x 210 mm / 15.4 x 9.4 x 8.3 inch
  • Notes
  • Dial glass (and possibly tuning unit) most likely made by Arena, see this model with similar logo.

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Author
  • Model page created by Alain Cousinard. See "Data change" for further contributors.
