Raeka 817

Raeka 817; Unknown - CUSTOM (ID = 2288862) Radio Raeka 817; Unknown - CUSTOM (ID = 2288861) Radio
Raeka 817; Unknown - CUSTOM (ID = 2288863) Radio Raeka 817; Unknown - CUSTOM (ID = 2288864) Radio
Raeka 817; Unknown - CUSTOM (ID = 2288865) Radio Raeka 817; Unknown - CUSTOM (ID = 2288866) Radio
Raeka 817; Unknown - CUSTOM (ID = 2288867) Radio Raeka 817; Unknown - CUSTOM (ID = 2288868) Radio
Use red slider bar for more.
Raeka 817; Unknown - CUSTOM (ID = 2288862) Radio
Unknown - CUSTOM: Raeka 817 [Radio] ID = 2288862 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Raeka 817, Unknown - CUSTOM BUILT: South Korea (ROK)

Country:  South Korea
Manufacturer / Brand:  Unknown - CUSTOM BUILT: South Korea (ROK)
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker - only for Earphone!
Power out 0.03 W (unknown quality)
from Radiomuseum.org Model: Raeka 817 - Unknown - CUSTOM BUILT: South
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85 x 122 x 27 mm / 3.3 x 4.8 x 1.1 inch
Notes

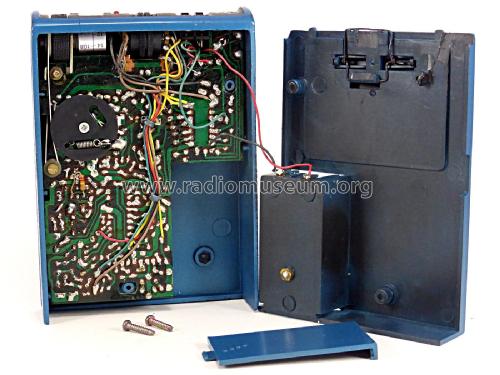

Raeka Model 817. No internal speaker, headphones only.  AM/FM. Integrated circuit plus 4 transistors on printed circuit board.  Sometimes "Newwave Sound" is printed on the front of the leather case.

Model page created by Ray Albright. See "Data change" for further contributors.
