Rayson Transistor hifi
Unknown - CUSTOM BUILT: Spain
- Country
- Spain
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Spain
- Year
- 1968
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 338485

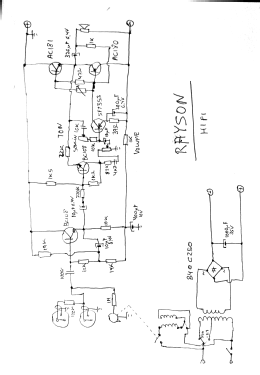

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Rayson Transistor hifi - Unknown - CUSTOM BUILT: Spain
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 320 x 270 x 165 mm / 12.6 x 10.6 x 6.5 inch
- Notes
-
Tocadiscos equipado con plato DUAL 410.
Maleta fabricada por "Maletas APATER" de Barcelona.
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
