RBM-1

RBM-1; MILITARY USSR (ID = 181168) Commercial TRX
RBM-1; MILITARY USSR (ID = 1721940) Commercial TRX RBM-1; MILITARY USSR (ID = 180641) Commercial TRX
RBM-1; MILITARY USSR (ID = 181159) Commercial TRX RBM-1; MILITARY USSR (ID = 181160) Commercial TRX
RBM-1; MILITARY USSR (ID = 181161) Commercial TRX RBM-1; MILITARY USSR (ID = 181162) Commercial TRX
RBM-1; MILITARY USSR (ID = 181163) Commercial TRX RBM-1; MILITARY USSR (ID = 181164) Commercial TRX
RBM-1; MILITARY USSR (ID = 181165) Commercial TRX RBM-1; MILITARY USSR (ID = 181166) Commercial TRX
Use red slider bar for more.

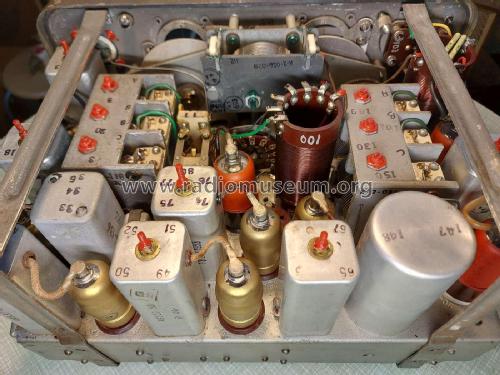

RBM-1; MILITARY USSR (ID = 1721940) Commercial TRX
MILITARY USSR: RBM-1 [Commercial TRX] ID = 1721940 933x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model RBM-1, MILITARY USSR (different makers for same model)

Country:  Soviet Union
Manufacturer / Brand:  MILITARY USSR (different makers for same model)
Year: 1948 Category: Commercial Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 9: 2К2М 2К2М 2К2М 2К2М 2К2М СО-257 СО-257 СО-257 СО-242
Main principle Superheterodyne (common)
Tuned circuits 9 AM circuit(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage and/or dry batteries / 2.4; 80 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RBM-1 - MILITARY USSR different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 320 x 200 x 270 mm / 12.6 x 7.9 x 10.6 inch
Notes

Funkstation RBM-1: militärische Funkstation, Frequenzbereich 1'500 - 5'000 kHz in zwei Bereichen (1'500 - 2'750 kHz / 2'750 - 5'000 kHz), Telephonie AM (A3: 0,3 W), Telegraphie CW (A1: 1,2 W).

Besteht aus Gerätetornister mit separat aufgebautem Sender und Empfänger (13 kg), und Stromversorgungstornister mit 2,4 V Heizakku und drei Anodenbatterien 80 V oder Zerhackerteil (14 - 16 kg), Funkertasche und Antennentasche.

Gemäss Fietsch bereits im 2. Weltkrieg von der Roten Armee eingesetzt, dann im Einsatz bei der KVP resp. nach deren Gründung von der NVA in der DDR im Batallions und Regimentsrahmen.

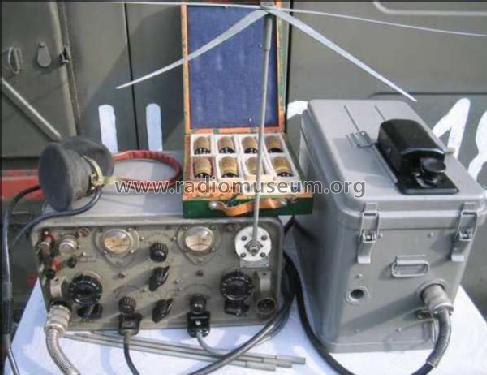

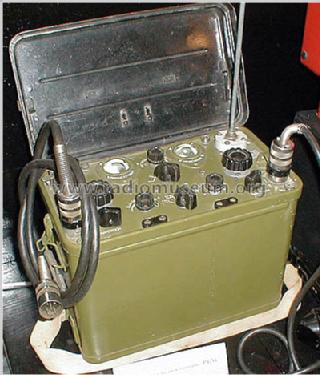

Military radio set RBM-1: covers  1.5 to 5.0 MHz in two ranges, telephony AM (A3: 0,3 W), telegraphy CW (A1: 1,2 W). Uses separate receiver and transmitter in one cabinet and power supply (heaters accumulator and HT batteries) in separate housing. For mobile and portable (field) purposes.

According to Fietsch already used in WWII by soviet forces. In the early 1950ies found in Warzaw treaty armed forces. Producibled with Russian, Polish and Czech notes on front panel.

Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Source of data -- Collector info (Sammler)
Mentioned in Nachrichtentechnik der Nationalen Volksarmee, Bd. 1 (pp 14-21)
