Récepteur à 3 lampes

Récepteur à 3 lampes ; Unknown - CUSTOM (ID = 1860781) Radio
Récepteur à 3 lampes ; Unknown - CUSTOM (ID = 1860773) Radio Récepteur à 3 lampes ; Unknown - CUSTOM (ID = 1860774) Radio
Récepteur à 3 lampes ; Unknown - CUSTOM (ID = 1860776) Radio
Use red slider bar for more.

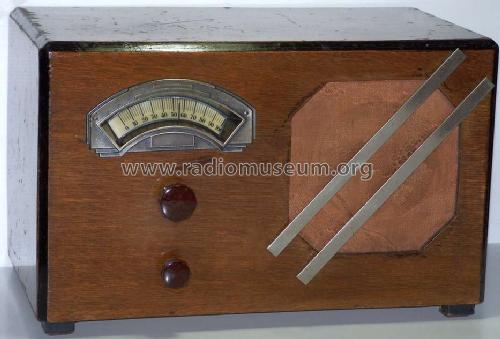

Récepteur à 3 lampes ; Unknown - CUSTOM (ID = 1860773) Radio
Unknown - CUSTOM: Récepteur à 3 lampes [Radio] ID = 1860773 933x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model Récepteur à 3 lampes, Unknown - CUSTOM BUILT: France (INCONNU)

Country:  France
Manufacturer / Brand:  Unknown - CUSTOM BUILT: France (INCONNU)
Year: 1933 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 56 47 80
Main principle TRF with regeneration; Reaction
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13.3 cm = 5.2 inch
Power out
from Radiomuseum.org Model: Récepteur à 3 lampes - Unknown - CUSTOM BUILT: France
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 240 x 220 mm / 15.4 x 9.4 x 8.7 inch
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)

Model page created by Roberto Gabba. See "Data change" for further contributors.



All listed radios etc. from Unknown - CUSTOM BUILT: France (INCONNU)
Here you find 231 models, 213 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
