FM-AM 5 Band All Transistor FM-500

FM-AM 5 Band All Transistor FM-500; Rising Hokuyo Musen (ID = 689190) Radio FM-AM 5 Band All Transistor FM-500; Rising Hokuyo Musen (ID = 689189) Radio
FM-AM 5 Band All Transistor FM-500; Rising Hokuyo Musen (ID = 689191) Radio FM-AM 5 Band All Transistor FM-500; Rising Hokuyo Musen (ID = 689188) Radio
Use red slider bar for more.
FM-AM 5 Band All Transistor FM-500; Rising Hokuyo Musen (ID = 689190) Radio

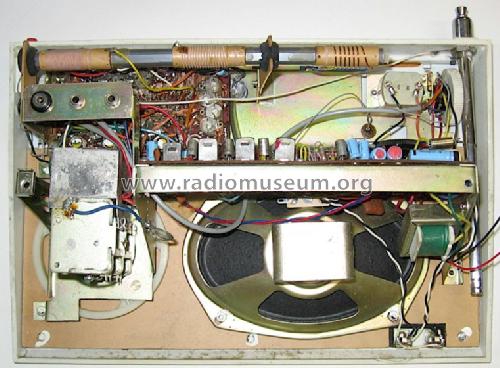

Rising Hokuyo Musen: FM-AM 5 Band All Transistor FM-500 [Radio] ID = 689190 877x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM 5 Band All Transistor FM-500, Rising (Hokuyo Musen Kogyo Co. Ltd.); Osaka:
By courtesy of Don Heaslip VE3NJH Canada / 22.Feb.2009

Country:  Japan
Manufacturer / Brand:  Rising (Hokuyo Musen Kogyo Co. Ltd.); Osaka
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA234 2SA234 2SA234 2SA234 2SA234 2SA234 2SA234 2SD75 2SB75
Main principle Superheterodyne (common)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: FM-AM 5 Band All Transistor FM-500 - Rising Hokuyo Musen Kogyo Co.
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 240 x 110 mm / 11.8 x 9.4 x 4.3 inch
Notes Rising FM-500 FM-AM 5 Band All Transistor;
"Rising" is the brand name. Maker unknown.
12 transistor model, 3 diodes counted in.
Bands:
MW: 525 - 1605 kHz,
SW1: 1.6 - 4.5 MHz,
SW2: 4.5 - 12 MHz,
SW3: 12 - 24 MHz,
FM: 88 - 108 MHz,
tuning indicator, scale light, AFC switch, tone control, ext. speaker & earphones front terminal.
Rear connectors for ext. antenna, pick-up, and "MPX-ADAP", made in Japan.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
