• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad RADIST Works

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90972

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• СО-148 СО-118 СО-118 УО-104 ВО-116

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RP-8 {РП-8} - Leningrad RADIST Works

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Coverage 217-630 m and 730-1900 m.

• Literature/Schematics (1)

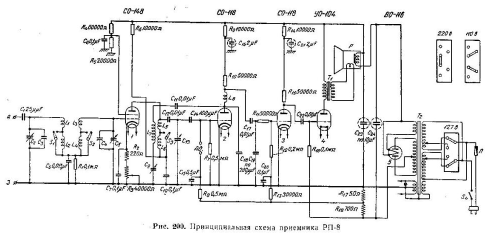

• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
