Эквивалент Антенны ŠTYR'-4M - ШТЫРЬ-4М

Unknown - CUSTOM BUILT: Soviet Union

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 197830

 Technical Specifications

  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Material
  • Special material, described in the notes.
  • from Radiomuseum.org
  • Model: Эквивалент Антенны ŠTYR'-4M - ШТЫРЬ-4М - Unknown - CUSTOM BUILT: Soviet
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 130 x 140 x 90 mm / 5.1 x 5.5 x 3.5 inch
  • Notes
  • Kunstantenne für KW- und/oder VHF-Funkgerät (welches?). Leistungsanzeige durch Thermokoppler-Instrument. Gehäuse aus gewebeverstärktem Hartpapier/Pertinax.
  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Эквивалент Антенны is part of the collections of the following members.

 Forum

Forum contributions about this model: Unknown - CUSTOM: Эквивалент Антенны ŠTYR'-4M - ШТЫРЬ-4М

Threads: 1 | Posts: 1

For an English speaking audience, I will add what I know of this military measuring device,

"Equivalent Antenna"

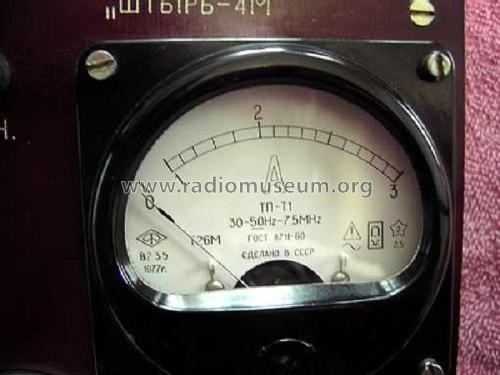

This piece can be used to measure AC amperes at power-line frequency or RF as an antenna current meter or dummy load for tuning up a transmitter. The porcelain-insulated terminal marked in Cyrillic "ВХОД  (Vkhod) = INPUT is used for RF current measurement. The back of the device has a grid of holes for ventilation. The top has a leather carrying handle and a stencil-painted number.  The other terminals are  ВЧ  for  высокая частота  (vysokaya chastota) =  (high frequency or HF) and З is for земля  (zemlya) = earth or ground)  The meter itself shows 30-50 Hz and up to 7.5 MHz which I assume is the designed upper limit.  The meter also shows сделано в ссср   (Made in USSR)

What's inside?
The unit is very well constructed with a case made of heavy phenolic. It contains five 50 ohm carbon resistors in parallel resulting in a net resistance of 10 ohms. Each of the five resistors can probably handle about 10-15 watts. The net resisance is in series with the meter thermoccouple.

Russian sources have informed me that the device was mainly used with the R-130-M HF Radio.



Rich Post, 11.Jun.21
