• Country
• United States of America (USA)

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: USA

• Year
• 1938 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156483

• Number of Tubes
• 4

• Valves / Tubes

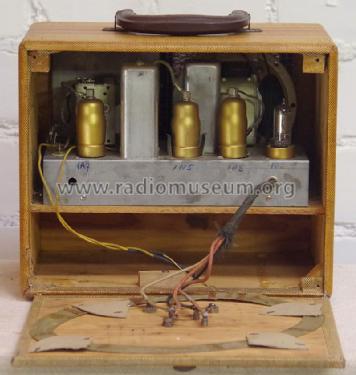

• 1A7G 1N5G 1H5G 1Q5G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Sportsman - Unknown - CUSTOM BUILT: USA

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 255 x 225 mm / 10.6 x 10 x 8.9 inch

• Notes
• At the high end of BC at 1700kc police is marked, but not as a separate band. hence BC only.

• Author
• Model page created by Hans De Seijn. See "Data change" for further contributors.
