Star 109N

• Country
• France

• Manufacturer / Brand
• Radio-Star; Nice

• Year
• 1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 164895

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• 9 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Star 109N - Radio-Star; Nice

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 110 x 230 mm / 9.4 x 4.3 x 9.1 inch

• Notes
• Star 109N Transistors;

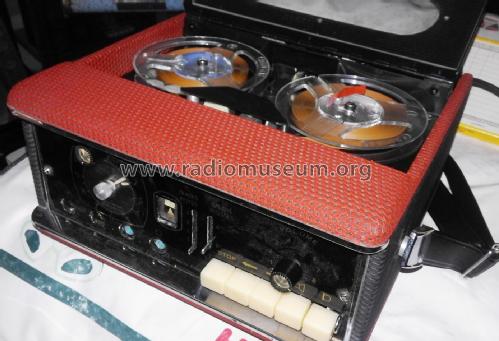

  Portable reel-reel tape recorder, push-button operation, analogue big size clock, four tracks, 4,75 & 9,5 cm/s speed, front terminals for AF out, stop?, P.U. and micro in, made in France.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Price in first year of sale
• 950.00 NF
