• Year
  • 1955 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 203620
    • Brand: Starlite

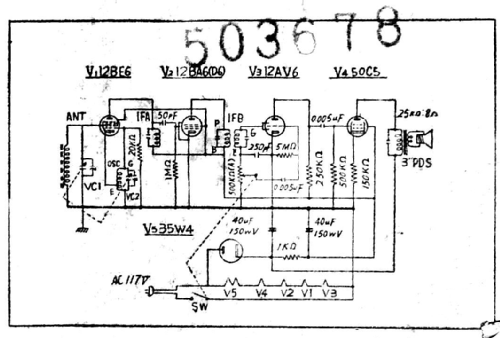

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Unknown 5 Tubes - Star-Lite Electronics Corp.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 6.5 x 4.5 x 4 inch / 165 x 114 x 102 mm
  • Notes
  • Made in Japan.
  • Author
  • Model page created by Flavio Chavez. See "Data change" for further contributors.
