Super Deluxe LW-MW-KW-UKW Radio

Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740996) Radio Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740991) Radio
Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740993) Radio Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740994) Radio
Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740995) Radio Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740998) Radio
Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740999) Radio Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1741000) Radio
Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1742980) Radio Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1742981) Radio
Use red slider bar for more.

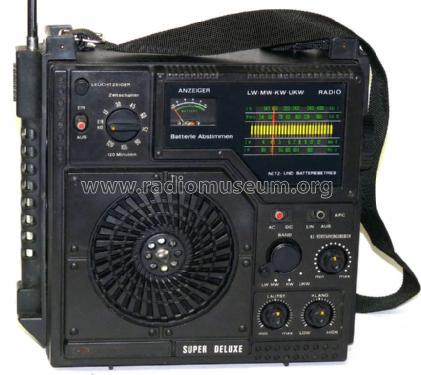

Super Deluxe LW-MW-KW-UKW Radio ; MTL Electronics Corp (ID = 1740996) Radio
MTL Electronics Corp: Super Deluxe LW-MW-KW-UKW Radio [Radio] ID = 1740996 863x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Deluxe LW-MW-KW-UKW Radio, MTL Electronics Corp.; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  MTL Electronics Corp.; Hong Kong
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 13: CS9020 CS9020 CS9020 CS9016 CS9011 CS9011 CS9018 CS9018 CS9017 CS9014 CS9014 2SB178 2SB178
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Super Deluxe LW-MW-KW-UKW Radio - MTL Electronics Corp.; Hong
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 220 x 90 mm / 9.4 x 8.7 x 3.5 inch
Notes

R.F. Verstärkungsregler; Zeitschaltuhr 15 - 120 Minuten; Batterie / Tuning Anzeige (Zeigerinstrument). U.K. Design Registration No. 967783

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
