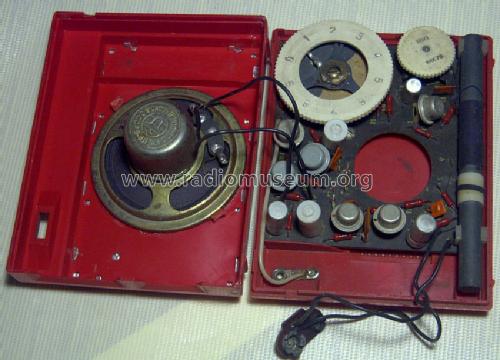

Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 66337) Kit Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 66338) Kit
Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 836220) Kit Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 836222) Kit
Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 836223) Kit Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 1198056) Kit
Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 2028590) Kit Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 2321983) Kit
Use red slider bar for more.
Звёздочка Star, Swjosdotschka; 1st Moskovsky (ID = 66337) Kit
1st Moskovsky: Звёздочка Star, Swjosdotschka [Kit] ID = 66337 821x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Звёздочка Star, Swjosdotschka, 1st Moskovsky Priborostroitelny Zavod

Country:  Soviet Union
Manufacturer / Brand:  1st Moskovsky Priborostroitelny Zavod
Year: 1970 ?? Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 6: П401 П401 МП41 МП38 МП41 МП38
Main principle TRF with diode detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Звёздочка Star, Swjosdotschka - 1st Moskovsky
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 108 x 83 x 35 mm / 4.3 x 3.3 x 1.4 inch
Notes

"Kinderfunkempfänger" (Swjosdotschka = Sternchen), Bausatz mit fertiger Leiterplatte, Ferritantenne, Trimmer als Drehko wurde auch in die DDR exportiert.

Childish radio. Produced as ready portable radio set and as radio KIT for home radio montage.

Source of data -- Collector info (Sammler)
Mentioned in -- Original-techn. papers. (Bedienungs- und Bauanleitung)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
