Times Sputnik SR-7 (Japan 715)

Times Sputnik SR-7 ; Unknown - CUSTOM (ID = 170013) Radio Times Sputnik SR-7 ; Unknown - CUSTOM (ID = 182896) Radio

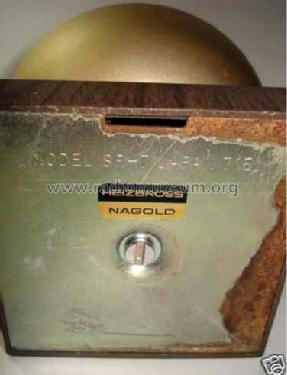

Times Sputnik SR-7 ; Unknown - CUSTOM (ID = 182897) Radio Times Sputnik SR-7 ; Unknown - CUSTOM (ID = 672410) Radio
Times Sputnik SR-7 ; Unknown - CUSTOM (ID = 1663400) Radio Times Sputnik SR-7 ; Unknown - CUSTOM (ID = 1663401) Radio
Use red slider bar for more.
Times Sputnik SR-7 ; Unknown - CUSTOM (ID = 170013) Radio
Unknown - CUSTOM: Times Sputnik SR-7 [Radio] ID = 170013 671x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Times Sputnik SR-7 (Japan 715), Unknown - CUSTOM BUILT: Japan

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Times Sputnik SR-7 - Unknown - CUSTOM BUILT: Japan
Material Various materials
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 100 x 130 x 100 mm / 3.9 x 5.1 x 3.9 inch
Notes

Radio in Form eines Sputniks.

Made in Japan 715

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Collectors' prices
Source of data - - Data from my own collection
Mentioned in Funkschau (1968 Heft 19)

Model page created by Peter Böhm. See "Data change" for further contributors.
